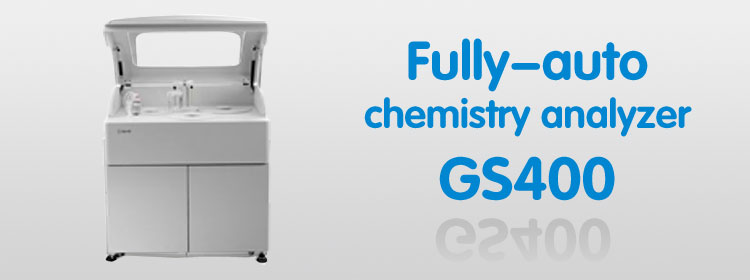

Index  »  Products  »  Testing Category  »  Chemistry analyzer  »  GS400Fully-auto chemistry analyzer
| PostDate:2010-12-31 | Click:



System function

Throughput: up to 450 tests/Hour(not including ISE tests)

Test Method: End point, Fixed time, Kinetic

Test Sequence: Discrete, Random access, STAT can be inserted at any time. Test sequence can be

sorted by samples or items

Spectrometer: enclosed array of spectrometer and photodiodes, maintenance free.

Cuvette washing: auto wash the cuvettes through 6 segments washing pipe and continuous use

              them, and each cuvette wash 12 times before use it again.

Reaction detect: monitor 81 cuvettes’s reaction at the same time

Photometric process: the interval time between two consecutive photometric points are exactly the

same.

Pipeline system: pressure auto released pumps and double filters to protect pumps and valves

Gearing: plastic gear leads lower noise and accuracy of positioning of moving parts

Environmental resistance: resistant form dust and water vapor

Operational system

Operational system: VISTA、Windows XP、Windows2000

Memory: auto save and recover the results

Report format: Customized report format

Status Check: real time check the  working status of the analyzer





Optical system

Light source: 12V 20W, halogen lamp with lifetime more than 2000 hours

Spectrometer: post spectrometer with arrayed and sealed filters, maintenance free

Wavelength: 340nm、405nm、450nm、510nm、546nm、578nm、630nm、670nm

Absorbance range: 0~6

Power/ Dimension

Voltage: AC 85V~264V, 55Hz±8Hz, Auto adapt according to the input voltage

Power Consume: ≤550VA

Dimension: 980mm×712mm×1100mm(L×W×H)

Net weight: 160Kg
