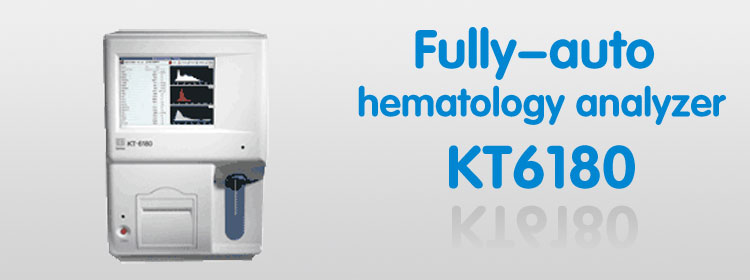

3 part differentiation of WBC，20 parameters + 3 histograms

Specifications

Test principle: electrical resistance for counting and SFT method for HGB

Test flow: fully auto and the blood don’t need dilute or other process

Quantity technology: ultra sound quantity method, resistance from disturb

Clot clear: high voltage burn and high pressure flush

Parameter: 3 part differentiation of WBC，20 parameters + 3 histograms

Sample volume: 9.8μl peripheral blood or venous blood

Throughput: 35 samples/hour

Language: English

QC mode: 、 -R、 -B、L-J, auto draw and print QC figure

Calibration mode: auto mode and manual mode are selectable, provide original calibrator and control

Reference range type: newborn、children、male、female and universal

Reagent: provide original reagent

Memory: save more than 30000 sample’s detail results including histograms

Display: Large colour LCD, show all parameters and histograms at same screen

Input and output: keyboard、mouse、Parallel Port、RS232 serial port, can be connected to computer

Printer: Inner thermal printer，can be connected to external computer and printer

Working Environment: Temperature：18℃～35℃；Humidity：40%RH-80%RH

Voltage: AC 175 V～265V，Auto adapt according to the input voltage

Dimension: 300 mm×400 mm×440mm（L×W×H）

Net weight: 17Kg
