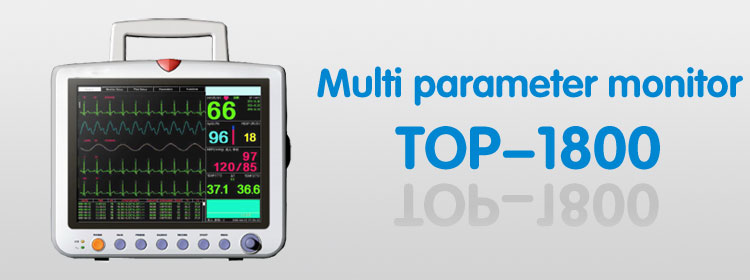

Features & Benefits:
1.6 Standard parameters:ECG,RESP,NIBP,SPO2,TEMP,PR/HR.
2.12.1"high resolution color TFT LCD display.
3.Chinese and english operation menu can meet the requirements of people in different countries.
4 It is widely used in operating room, surgery, ICU/ CCU, department of obstetrics and gynecology, emergency room, emergency center, clinical teaching and so on.
5 UP to 6 hours working capacity of built-in rechargeable battery(optional).
6 NIBP has three working modes: positive direction, reverse direction and rapid measurement,it also has the function of monitoring Neonate.
7 Capture dynamic waveforms.
8 Large volume of tabular and graphic trends information storage and easy to recall.
9 Efficient resistance to interference of defibrillator and HF knife.
10 Options of internal printer and EtCO2.
Dimension and Weight
Dimension： 320mm x 260mm x 150mm Packing Dimension: 400mm x310mm x 380mm
G .Weight： <7.0KGS
Operation Environment
Temperature: Working 0~+40ºC Transportation and storage –20~+60ºC
Humidity: Working ≤85% Transportation and storage ≤93%
Power: AC200-2440V,50/60Hz
Patient range: Neonate, Pediatric, and adult patients
Performance Specifications
Display: 12.1"color TFT
Indicator: Power/battery indicator light, alarm sound
Battery: Rechargeable, 6 hours for continuous working
Trend time: 72 hours
Alarm: User-adjustable High ,Medium and Low limits 3-level Audible and visual alarm
Networking: Connected to central monitoring system
Recorder: Built-in ,thermal array
ECG
lead selection: I,II,III,avR,avL,avF,V
HR:
1 Measuring range: 30~280bpm
2 Measuring Accuracy: ±3%
3 Display resolution:1bpm
S-T segment excursion(under diagnosis mode)
1 Measuring range: -0.8V~ +0.8V
2 Measuring Accuracy: ±0.02mv or ±5%
3 Display resolution:0.02mv
ECG Waveform:
1 manual gain selection:×0.5, ×1, ×2
2 Sweep speed: 12.5mm/s;25mm/s;50mm/s
3 lead cut: auto detection
4 frequency characteristics:DIA: 0.05~100HZ MON: 0.5~40HZ
5 Efficient resistance to interference of defibrillator and HF knife.
6 Accessory:5-core ECG cable
RESPIRATION
Method: Thoracic impedance
RR:
1 Measuring range: 0~99bpm
2 Measuring Accuracy: ±2bpm
3 Display resolution:1bpm
TEMPERATURE
1 Measurement Range: 25~43.5℃
2 Measuring Accuracy: ±0.2℃
3 Display resolution:0.1℃
4 Corresponding time:≤3min
5 Accessory: surface probe
NIBP
1 Measurement Method: Automatic nonlinearity vibration measurement
2 Measurement Range: 40~250mmHg
PR
1 Measurement Range:30~250bpm
2 Measuring Accuracy: ±2 bpm
3 Display resolution1bpm
Measurement mode: Manual range of measurement interval:1~250min/ Automatic
Measurement Unit: mmHg/Kpa selectable
Over-pressure protection: Over-pressure protection will be started under following condition:
Adult: 315~330mmHg Pediatric:235~250mmHg Neonate: 150~165mmHg
Measurement time is about 30 seconds without interfere
SPO2
1 Measurement range: 0~100%
2 Accuracy: ±2%, 70-100% SPO2;±3%, 30-69% SPO2d
Pulse Rate: Range: 30~250bpm Accuracy:±2%
Standard Configuration: ECG,NIBP,RESP,1-TEMP,SPO2,PR
Optional: Thermal Recorder , built-in charging battery ,ETCO2
